SEETEC 150m SDI/ HDMI Wireless Video Transmission System WHD150
Model：WHD150
Introduction
● Professional WHDI (MIMO/OFDM) technology
● Uncompressed 3G/HD/SD-SDI and HDMI
● 150m (LOS) transmission distance (max 200m)
● 5GHz ISM frequency band
● Multicast support
● Industrial metal case
● Support DC7V-36V voltage
Input
3G/HD/SD-SDI, HDMI
Output
3G/HD/SD-SDI, HDMI
DM
Shop/2017/12/SEETEC-WHD150-Specification.jpg
Download
正在提交中....
Contact Us
OVERVIEW
FEATURES
SPECIFICATIONS
VIDEO
APPLICATION
ACCESSORIES
SEETEC WHD150 Wireless HD Transmission System
SEETEC WHD150 is ideal for filmmakers to transition between scenes effortlessly, the director and photographer can exert their creativity, improve shooting efficiency, especially the special effects shots, especially the need wireless transmission.
SEETEC WHD150 is ideal for filmmakers to transition between scenes effortlessly, the director and photographer can exert their creativity, improve shooting efficiency, especially the special effects shots, especially the need wireless transmission.
SEETEC WHD150 is the broadcast industry wireless system, includes a transmitter and a receiver, with WHDI (OFDM) technology, supports uncompressed 3G/HD/SD-SDI and HDMI wirelessly transmitted in 150 meters scale (max 200m). The wireless system runs at 5.1-5.9GHz License-free operation frequency. The frequency bands are user configurable. User can set several receivers at the same frequency bands as the 1 transmitter to enable the multicast mode. The system is pure hardware connection, plug and play build-up. Exquisite design, equipped with external SONY F970 battery mechanical interface for battery plug-in, which is widely used in film shooting, live sporting events, director monitoring, remote monitoring, live wedding broadcasting and forum broadcasting etc.
WHDI Wireless Transmission System
SDI and HDMI, 150 meters
WHD150 is the broadcast industry wireless system, includes a transmitter and receiver, with WHDI (OFDM) technology, supports uncompressed 3G/ HD/ SD-SDI and HDMI wirelessly transmitted in 150 meters scale (max 200m), and with less than 1ms latency. The system is pure hardware connection, plug and play build-up, which is widely used in on-site shooting and director monitoring.
SDI and HDMI, 150 meters
WHD150 is the broadcast industry wireless system, includes a transmitter and receiver, with WHDI (OFDM) technology, supports uncompressed 3G/ HD/ SD-SDI and HDMI wirelessly transmitted in 150 meters scale (max 200m), and with less than 1ms latency. The system is pure hardware connection, plug and play build-up, which is widely used in on-site shooting and director monitoring.
High Quality HD 1080P
Uncompressed SDI/HDMI, less than 1ms latency
The WHD150 3G-SDI/ HDMI Wireless Video Transmission System from SEETEC is able to transmit Full HD 1080p video at up to 150m line-of-sight with no quality loss and less than 1 ms latency. It can transmit even further; up to 200m line-of-sight (depending on conditions), but at this extended range some loss in quality may be experienced.
Uncompressed SDI/HDMI, less than 1ms latency
The WHD150 3G-SDI/ HDMI Wireless Video Transmission System from SEETEC is able to transmit Full HD 1080p video at up to 150m line-of-sight with no quality loss and less than 1 ms latency. It can transmit even further; up to 200m line-of-sight (depending on conditions), but at this extended range some loss in quality may be experienced.
-
SDI/ HDMI Input and Output
Meet your different needsThe transmitter supports:
3G/HD/SD-SDI input X 1
HDMI input X 1The receiver supports:
3G/HD/SD-SDI output X 1
HDMI output X 1The receiver SDI and HDMI are output simultaneously. If both SDI and HDMI is input to transmitter, the receiver will give priority to output SDI signal.
5.1-5.9GHz Operation Frequency
10 different frequency points
The WHD150 wireless system runs at 5.1-5.9GHz License-free operation frequency. The frequency bands are user configurable and support at most 4 sets of wireless transmission in one location. Without the trouble of many signal lines, allowing filmmakers to capture and transition between scenes effortlessly.
10 different frequency points
The WHD150 wireless system runs at 5.1-5.9GHz License-free operation frequency. The frequency bands are user configurable and support at most 4 sets of wireless transmission in one location. Without the trouble of many signal lines, allowing filmmakers to capture and transition between scenes effortlessly.
Multicast Support
1 transmitter to multi receivers
Support point to point / point to multi-point transmission mode, support 1 transmitter to multi receivers, You can set several receivers at the same frequency bands as the 1 transmitter to enable the multicast mode. Without signal line, wireless transmission more efficient, the signal does not decay.
1 transmitter to multi receivers
Support point to point / point to multi-point transmission mode, support 1 transmitter to multi receivers, You can set several receivers at the same frequency bands as the 1 transmitter to enable the multicast mode. Without signal line, wireless transmission more efficient, the signal does not decay.
Simple and Reliable
Use AES-128 data encryption transmission, data security and reliable, give you more secure encryption protection. The 5GHz band, no affected by 2.4GHz band equipment and low frequency interference.
Use AES-128 data encryption transmission, data security and reliable, give you more secure encryption protection. The 5GHz band, no affected by 2.4GHz band equipment and low frequency interference.
-
Power Supply and Installation
Both the transmitter and receiver are compact size designed, both the TX and RX feature 1⁄4”-20 holes for mounting to cameras and equipped with SONY F970 battery plates to be powered by standard F970 camera batteries. There are D28S / D54, LP-E6 and U60 (optional) a variety of battery plates to choose. The transmitter and receiver can also be powered via the 4-PIN LEMO DC in socket of 7-36V input.
Features Highlights:
SEETEC WHD150 is the broadcast industry wireless system, includes a transmitter and a receiver, with WHDI (OFDM) technology, supports uncompressed 3G/HD/SD-SDI and HDMI wirelessly transmitted in 150 meters scale (max 200m). Good stability and strong anti-jamming capability under 5GHz frequency band and the system is pure hardware connection, plug and play build-up. Exquisite design, equipped with external SONY F970 battery mechanical interface for battery plug-in, which is widely used in film shooting, live sporting events, director monitoring, remote monitoring, live wedding broadcasting and forum broadcasting etc.
1. Professional WHDI (MIMO/OFDM) technology
2. Uncompressed 3G/HD/SD-SDI and HDMI
3. Support full-hd 1080P/60Hz video display with very low latency
4. 150m (LOS) transmission distance (max 200m)
5. 5.1-5.9GHz license-free operation frequency
6. Multicast – 1 transmitter to multi receivers
7. AES-128 encryption transmission
8. Industrial metal case, stable and reliable
9. Pure hardware connection, Plug and Play
10. Support external Li-battery supply for mobile convenience
11. Support Hot-shoe installation with 1/4 screw nut
12. Wide voltage design, support DC7V-36V voltage
SEETEC WHD150 is the broadcast industry wireless system, includes a transmitter and a receiver, with WHDI (OFDM) technology, supports uncompressed 3G/HD/SD-SDI and HDMI wirelessly transmitted in 150 meters scale (max 200m). Good stability and strong anti-jamming capability under 5GHz frequency band and the system is pure hardware connection, plug and play build-up. Exquisite design, equipped with external SONY F970 battery mechanical interface for battery plug-in, which is widely used in film shooting, live sporting events, director monitoring, remote monitoring, live wedding broadcasting and forum broadcasting etc.
1. Professional WHDI (MIMO/OFDM) technology
2. Uncompressed 3G/HD/SD-SDI and HDMI
3. Support full-hd 1080P/60Hz video display with very low latency
4. 150m (LOS) transmission distance (max 200m)
5. 5.1-5.9GHz license-free operation frequency
6. Multicast – 1 transmitter to multi receivers
7. AES-128 encryption transmission
8. Industrial metal case, stable and reliable
9. Pure hardware connection, Plug and Play
10. Support external Li-battery supply for mobile convenience
11. Support Hot-shoe installation with 1/4 screw nut
12. Wide voltage design, support DC7V-36V voltage
3G-SDI/HDMI Transmitter (WHD150)
| Input |
3G/HD/SD-SDI×1 HDMI×1 |
| SDI Format |
480i (59.94) 720p (60/ 59.94/ 50) 1080i (60/ 59.94/ 50) 1080P (60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98) 3G, HD and SD-SDI (auto-selected) SMPTE-259/274/292/296/372/424/425 |
| HDMI Format |
525i/ 625i 720p (50/ 59.94/ 60) 1080i(50/ 59.94/ 60) 1080p (60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98) |
| Input Audio Format | SDI embedded 4 channel 24 bit/48KHz |
| Signal Indicator | Power-Green; Video-Yellow |
| Transmission Power | Maximum 15dBm |
| Frequency Band | 5.1-5.9GHz, configurable with China, North American, Europe, etc |
| Modulation Mode | OFDM 16QAM |
| Max Transmission Distance | 150m (MAX 200) |
| Latency | ≤1ms |
| Occupied Bandwidth | 20/40MHz |
| Install Way | 1/4"-20 Thread Socket |
| Working Temperature | 0 ~ 40°C |
| Storage Temperature | -20 ~ 60°C |
| Power Connector | 4-PIN LEMO DC |
| Input Voltage | DC 7-36V |
| Power Consumption | <6.5W |
| Unit Size | 125Lx68x25.2mm (don't include antennas) |
| Unit Weight | 290g |
3G-SDI/HDMI Receiver (WHD150)
| Output |
3G/HD/SD-SDI×1 HDMI×1 |
| SDI Format |
480i (59.94) 720p (60/ 59.94/ 50) 1080i (60/ 59.94/ 50) 1080P (60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98) 3G, HD and SD-SDI (auto-selected) SMPTE-259/274/292/296/372/424/425 |
| HDMI Format |
525i/ 625i 720p (50/ 59.94/ 60) 1080i(50/ 59.94/ 60) 1080p (60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98) |
| Output Audio Format | SDI embedded 4 channel 24 bit/48KHz |
| Signal Indicator | Power-Green; Wireless RSSI-Blue (5 LEDs); Video-Yellow |
| Receiver Sensitivity | -75dBm |
| Frequency Band | 5.1-5.9GHz, configurable with China, North American, Europe, etc |
| Modulation Mode | OFDM 16QAM |
| Max Transmission Distance | 150m (MAX 200) |
| Latency | ≤1ms |
| Occupied Bandwidth | 20/40MHz |
| Install Way | 1/4"-20 Thread Socket |
| Working Temperature | 0 ~ 40°C |
| Storage Temperature | -20 ~ 60°C |
| Power Connector | 4-PIN LEMO DC |
| Input Voltage | DC 7-36V |
| Power Consumption | <6W |
| Unit Size | 152x95.5x25mm (don't include antennas) |
| Unit Weight | 370g |
Solutions
SEETEC WHD150 wireless HD transmission system, with transmitter and receiver, real 1080P wireless video transmission, easy to set up for you mobile camera, live events, film and television production and director monitoring, live broadcast, live conference, outdoor activities.
SEETEC WHD150 wireless HD transmission system, with transmitter and receiver, real 1080P wireless video transmission, easy to set up for you mobile camera, live events, film and television production and director monitoring, live broadcast, live conference, outdoor activities.
Sport Live Event
Athletes in sports venues move back and forth, camera with the line can not be easily moved; all kinds of outdoor sports, extreme sports, outdoor adventure, like marathon and bicycle race, the outdoor environment is more complicated than the indoor environment, it is difficult to route the equipment and the equipment is ready to move.
SEETEC WHD150 wireless transmission can fully meets the demands of outdoor sports broadcasts living, eliminating the need for long-distance wiring, while maintaining high-definition quality, real-time transmission requirements, simple operation without barriers, greatly simplifies the majority of outdoor live sharing.
Athletes in sports venues move back and forth, camera with the line can not be easily moved; all kinds of outdoor sports, extreme sports, outdoor adventure, like marathon and bicycle race, the outdoor environment is more complicated than the indoor environment, it is difficult to route the equipment and the equipment is ready to move.
SEETEC WHD150 wireless transmission can fully meets the demands of outdoor sports broadcasts living, eliminating the need for long-distance wiring, while maintaining high-definition quality, real-time transmission requirements, simple operation without barriers, greatly simplifies the majority of outdoor live sharing.

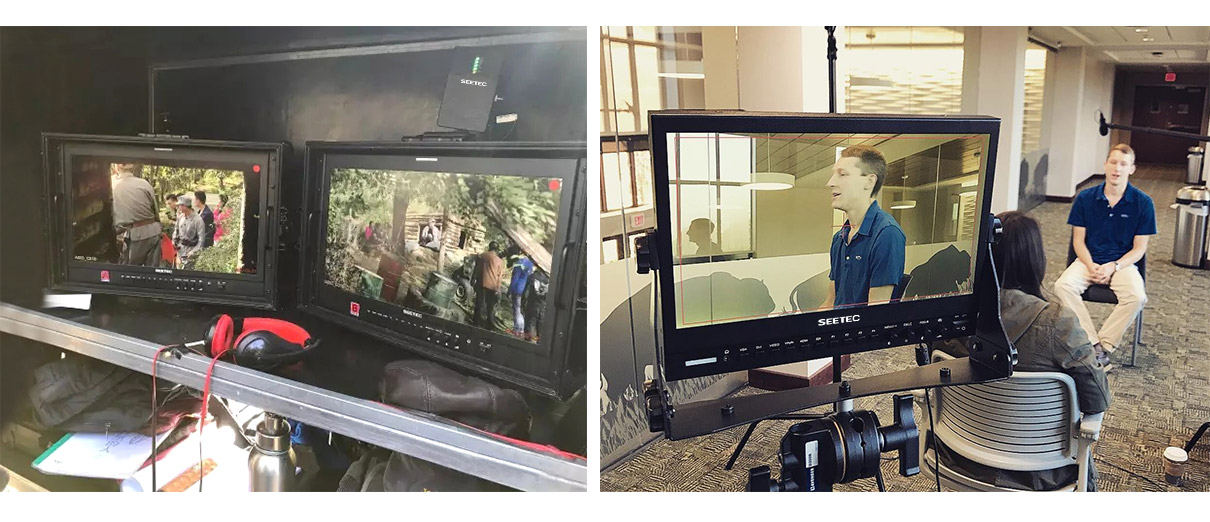

Director Wireless Monitoring
In the Film crew, including the extras, messy video line is easy to trip people, or even damage to equipment, the photographer also need to have a helper behind the finishing wire, depending on the SEETEC WHD150 HD wireless transmission solution for film and television shooting become simple and high efficiency. SEETEC WHD150 wireless transmission equipment design for filming, live broadcast provides a more convenient and safe solution, with long-distance, non-compressed, no delay, real-time transmission and other features to fully meet the outdoor shooting and Transfer needs.
In the Film crew, including the extras, messy video line is easy to trip people, or even damage to equipment, the photographer also need to have a helper behind the finishing wire, depending on the SEETEC WHD150 HD wireless transmission solution for film and television shooting become simple and high efficiency. SEETEC WHD150 wireless transmission equipment design for filming, live broadcast provides a more convenient and safe solution, with long-distance, non-compressed, no delay, real-time transmission and other features to fully meet the outdoor shooting and Transfer needs.
Live Events
In large-scale activities, TV and News living, the photographers need transition between scenes efficiency, video lines affect the shooting efficiency, and no convenient for director monitoring. SEETEC WHD150 wireless transmission system with long-distance, non-compressed, no delay, real-time transmission and other features to fully meet the field shooting and Live.
In large-scale activities, TV and News living, the photographers need transition between scenes efficiency, video lines affect the shooting efficiency, and no convenient for director monitoring. SEETEC WHD150 wireless transmission system with long-distance, non-compressed, no delay, real-time transmission and other features to fully meet the field shooting and Live.
Conference Broadcast
The broadcast vehicle can’t enter the venue, video cables are inconvenient, the photographer can carry the transmitter to transition between scenes effortlessly, WHD150, making the conference live convenient.
The broadcast vehicle can’t enter the venue, video cables are inconvenient, the photographer can carry the transmitter to transition between scenes effortlessly, WHD150, making the conference live convenient.
Standard Accessories:
1× Receiver
1× Transmitter
2× 5GHz Antennas
2× F970 Battery Plates
2× D-tap to Lemo Cables
1× Suitcase
-
