SEETEC P215 PRO-CO 21.5 inch 1000nit High Bright Portable Protective Broadcast Monitor Full HD 1920x1080
Model：P215 PRO-CO
Introduction
Screen Size： 21.5" IPS
Resolution： 1920x1080 pixels
Aspect ratio： 16:9
Brightness： 1000cd/m²
Input
2*HDMI 2.0, 2*3G-SDI, 1*DVI 1*Tally 1*USB
Output
1*HDMI 2.0, 2*3G-SDI, Stereo Headphone，speaker
DM
Shop/2024/6/P215PRO-CO-en1.pdf
Download
正在提交中....
Contact Us
OVERVIEW
FEATURES
SPECIFICATIONS
VIDEO
APPLICATION
ACCESSORIES
Traditional aluminum case are relatively bulky and have a single function. For outdoor shooting, not only test your arm strength but also can't use multiple function. Don't worry, SEETEC's P215 PRO-CO comes with a brand new portable protective case, which is thinner, lighter, and better protection as its biggest advantage. Not only that, the P215 PRO-CO also has a 1000nit high brightness full HD screen and a series of camera auxiliary functions. Can easily handle various environments outdoor shooting.
The protective case combining a full aluminum alloy frame with a tough shell, it provides excellent protection against impact，better protective monitor.The important is it only with about 4.8kg weight and the thickness only 11.5cm,very convenient to carry.
The protective case comes with 4 high rebound protective corners, can minimizes damage from accidental impacts.It effectively absorbs impact forces, providing comprehensive protection for monitor.
The protective case features a rugged and sturdy shell that can support a load capacity of up to 80kg. Whether stacking additional items or with standing unexpected pressure,it ensures the utmost protection for the device.
The front and back covers of the box can be quickly removed or installed without any tools using butterfly locks.
Clearly checking and capture every nuance
With extremely high resolution 21.5-inch IPS panel，a wider field of view and clearly present more detailed image. 8bit color depth with 16.7M colors display.
Each monitor is calibrated by CalMAN professional color calibration software before ex-factory to ensure color accuracy and good reproduction.
High brightness 1000nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.
HDMI upgraded for 4K at 60HZ, capable of transmitting double the video data of 4K at 30HZ. Provide smoother visuals and maintains high-frame-rate dynamic images from cameras.
Supports upload 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. P215 PRO-CO allows you to load internally up to 32 custom LUTs, looks or profiles at any time via USB flash driver and instantly select between them, maintaining creative intent, always.
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position. P215 PRO-CO becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

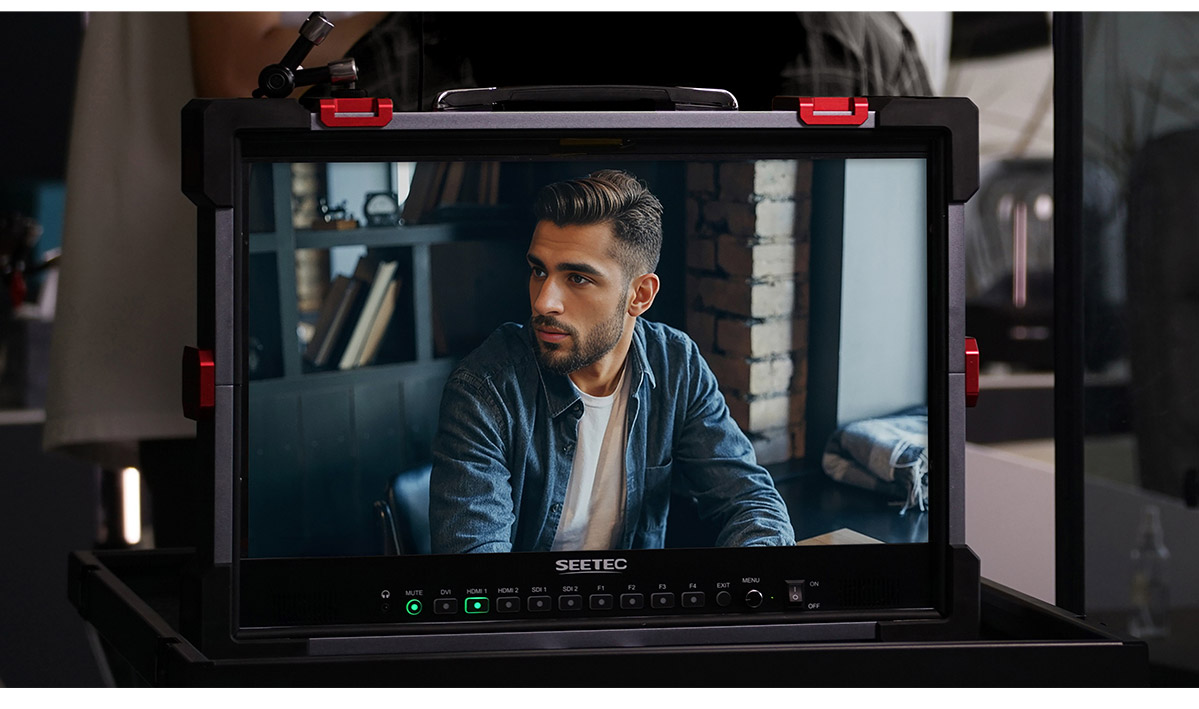

When you are busy at the shooting scene，you need to be able to easily control the equipment.P215 PRO-CO comes with multiple intuitive buttons, you able to one-key mute or easy to switch the signal input source,and the button with green LED backlight,you can fast to know the signal being played even if the dim environment. The 4 customizable shortcut keys, you can custom shortcut function according to your needs, such as all waves,focus assist and so on, improve the shooting efficient.
Equipped with 3G-SDI, HDMI2.0 DVI signal ports, compatible with professional camcorder and the latest DSLR cameras on the market.
The front and rear panel of P215 PRO-CO including tally light, it can display in red, green or yellow Tally signal. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry standard parallel pin connector on the rear panel.

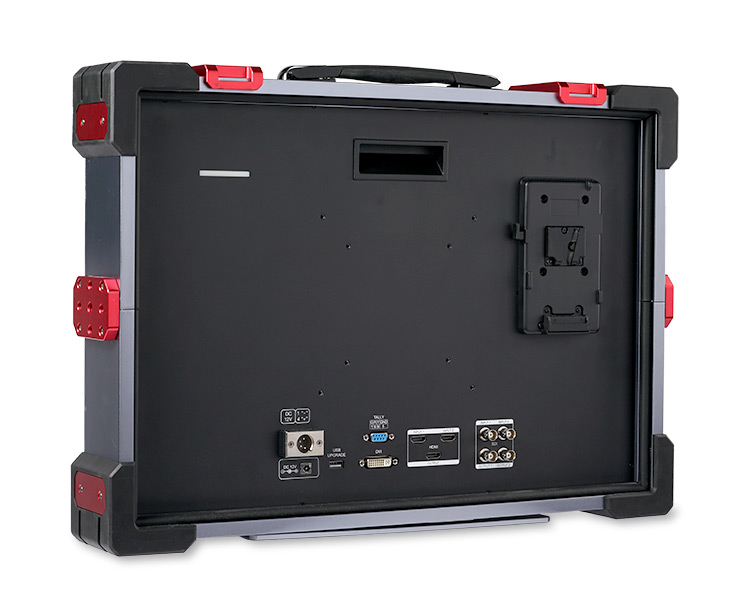

Via V-mount battery plate (standard) or Anton Bauer battery plate (optional),support to install V-mount battery or Anton Bauer Battery; via XLR or DC IN interface,support XLR power adapter or DC12V/4A power adapter.
Built-in up to 11 languages, that means P215 PRO-CO is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
The top, left and right side of the protective case is equipped with 1/4" and 3/8" screw threads, can effortless to install video transmission or other devices, providing more possibilities for shooting.
To prevent screen breakage caused by monitor tilting, the P215 PRO-CO has a hidden stable stand support at the bottom of the protective case. When the device is placed on the desktop, floor, or other areas, the stand can be opened in time manner to avoid accident.
Key Features:
* 21.5-inch 1920x1080 full HD large screen,view details with confidence
* Portable protective case, easy to handle various tasks
* 1000nits high brightness, ideal choice outdoor shooting
* Intuitive buttons operation, 4 custom function shortcut buttons to improve work efficient
* Custom 3D-LUT, preview film look
* Support 4K@60 HDMI Input and Output
* Under HDMI signal the audio meter level can be display max 8 channels; under SDI signal can be display max.16 channels
* HDR monitoring, what you see is what you get
* Built-in front and rear Tally light, enhance team cooperation
* The top, left, and right side of the protective case are equipped with 1/4 "and 3/8" screw threads, which can be used to install video transmission or other devices
* Stereo Earphone output
* Waveform (RGB、YUV、Y)
* Vector
* Histogram(RGB1、RGB2、Y)

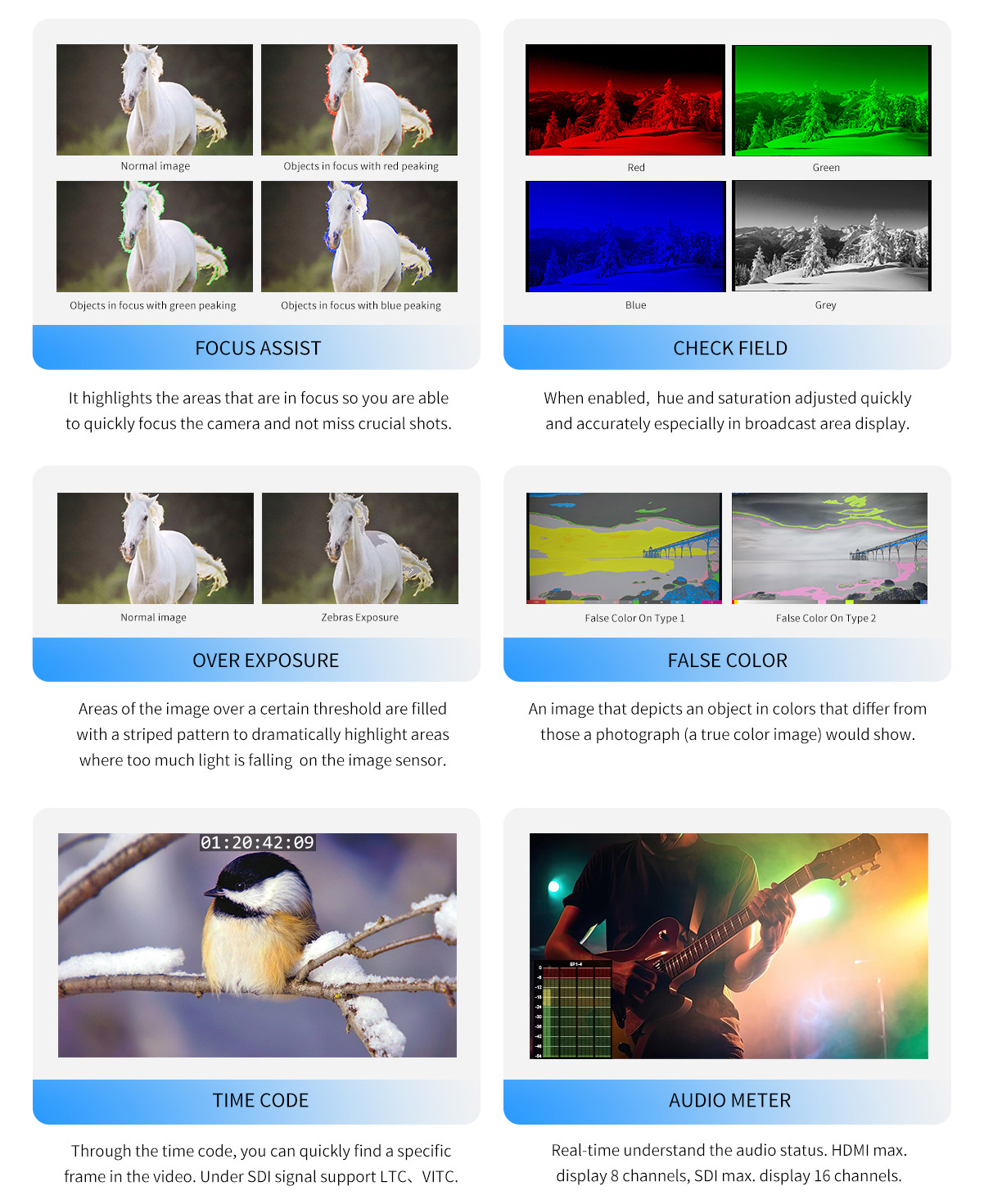

*Focus Assist ( Red, Green, Blue three colors optional highlight over parts of the image in focus; focus level 1~10)
*Embedded Audio (HDMI signal with pr1, gp1, gp2, gp12 modes; SDI signal with pr1, gp1, gp2, gp12, gp3, gp4, gp14 modes)
*Over Exposure (10IRE~100IRE)
* Check Field (Red, Green, Blue, Gray)
*False Color (Normal, ARRI)
*Time Code (LTC, VITC) for SDI
*Grids (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9)
*Safe Frames ( 80%, 85%, 90%, 93%, 96%, 2.35:1)
*Center Marker
*Ratio Marker(4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
*Scan Mode (Under Scan, Over Scan)
*Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
*Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User.Under User, you can custom adjust nx 1.20x~2.00x)
*Image Flip (H Flip, V Flip, H_V Flip)
*Zoom Mode(2X、4X、9X、16X、User. Under User, you can adjust 100%~200%)
*Image Freeze
*Pixel to Pixel
*3D-LUT(built in SLOG2, SLOG3, LOGC; support upload custom LUTs up to 32)
*HDR (HLG1, HLG2, HLG3)
*Display Adjustment (can be adjust screen Backlight, image Brightness,Contrast,Saturation, Tint 0~100)
*Colortemp (5600K, 6500K, 9300K, User)
Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB Histogram
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
Embedded Audio Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring.
Nine Grid
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Image Flip
The Horizontal,Vertical and Hor&Ver of the image around flip
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safety Marker
Safety Marker for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
| Model | P215 PRO-CO |
| Screen Size | 21.5" IPS |
| Color Depth | 16.7M |
| Resolution | 1920×1080 pixels |
| Pixel pitch | 0.24795(W) x 0.24795(H) mm |
| Aspect Ratio | 16:9 |
| Brightness | 1000cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
| 2X SDI | 3G-SDI |
| 2 X HDMI | HDMI-A |
| 1 X DVI | DVI-I |
| 1 X Tally | 9 pin |
| 1 X USB | USB (upgrade and LUT import) |
| 2 X SDI | 3G-SDI |
| 1 X HDMI | HDMI-A |
| Audio | Stereo Headphone, Speaker |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 4K 3840×2160p (60/50/30/29.97/25/24/23.98Hz |
| 4K 4096×2160p (60/50/30/29.97/25/24/23.98Hz |
| Input Voltage | DC 12V |
| Power Consumption | ≤44W |
| Working Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C |
| Unit Size | 553.5×394.5×115mm |
| Unit Weight | 9.25kg |
| Outer Carton Qty | 1 |
| Outer Carton Size | 670*145*460mm |
| Gross Weight | 11.5kg |
Packaging List:
1× monitor
1× 4A Power Adapter
1× Tally Kit
1× V-mount Battery Plate (default to mount on device)
1× Mini HDMI Cable
1× HDMI Cable
1× SDI CableCable
1× User Manual Manual
