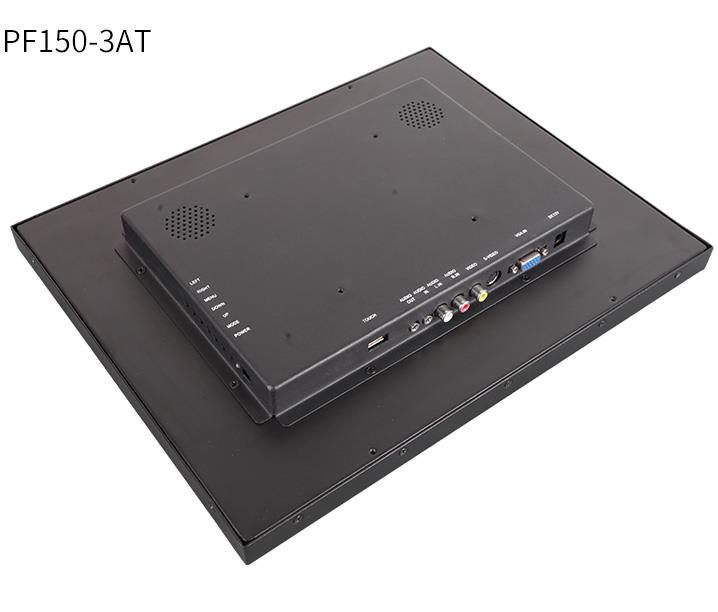

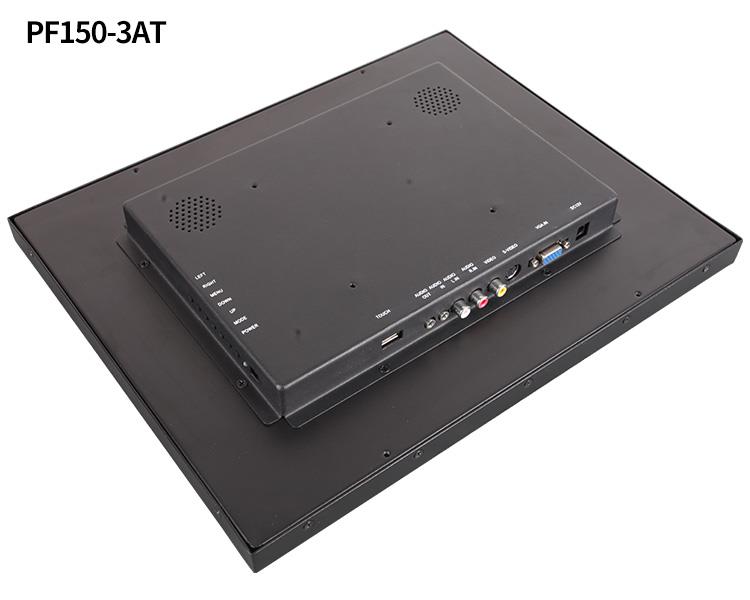

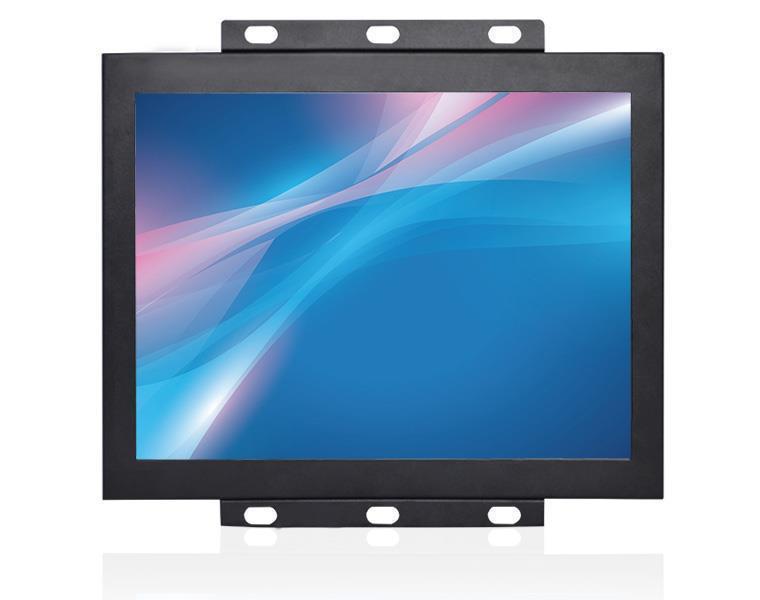

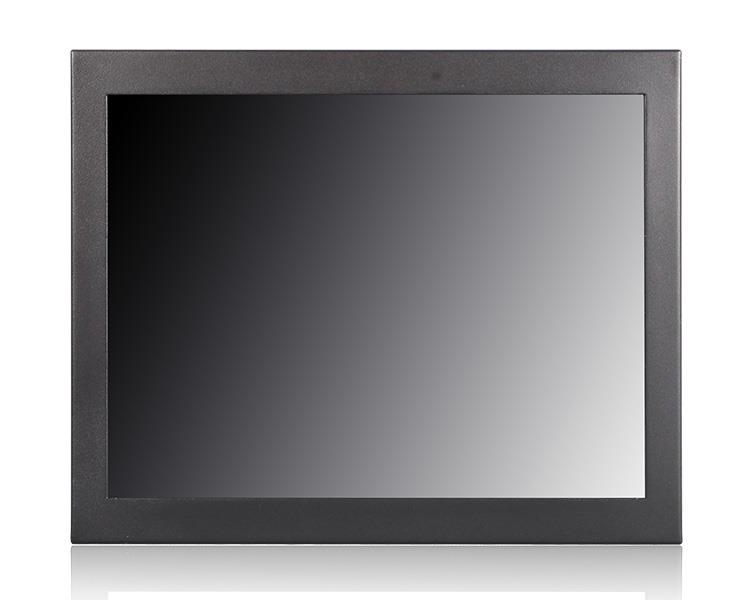

15" 1024x768 TFT LCD Touch Screen Metal Open Frame Monitor PF150-3AT&PF150-3AHT

Hits:

Model:PF150-3AT&PF150-3AHT

Introduction

Screen Size:  15"
Resolution:   1024x768 pixels
Aspect ratio: 4:3
Brightness:   350cd/m²

Input

HDMI, AV1, AV2, Audio, VGA

Output

Audio

Download

pdf Shop/2017/9/SEETEC-PF150-3AT-Specification.pdf

  • OVERVIEW

  • FEATURES

  • SPECIFICATIONS

  • VIDEO

  • APPLICATION

  • ACCESSORIES


SEETEC's Open Frame LCD display is designed for commercial and industrial applications , high brightness for sunlight readable application. Features wide operating temperature, high brightness, touch screen capable, and customized mechanical design; fulfill the demand for extreme environments. It offers the best visibility, performance and cost effective value. The high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality. And guaranteeing product life cycle longevity, stability, and reliability.
Perfectly suitable for kiosks, ATM, POS, marline, military, medical, transportation, Avionics, industrial automation, gaming, digital entertainment display and outdoor application.
Features Highlights
1. 15" LCD panel with resolution 1024 x 768
2. Green LED-backlit panel technology
3. Easy to Mount Open Frame,Rugged construction against external impact, metal chassis
4. VESA Mounting Hole Pattern
5. OSD buttons can prevent unnecessary setting changes
6. Standard VGA Input (Optional for DVI, HDMI, AV)
7. Complete custom design/solution
Options
Three versions of signal inputs optional.
Engineered Solutions
As display technologies evolve, so do our customer's imaginations. SEETEC continues to engineering solutions to meet the diverse needs of the display marketplace. Whether your application is for a kiosk, CRT replacement, HMI, POS, Public Information Display or Digital Signage, this is the simple all-in-one solution for you. Easily integrated, we combine performance and quality with the versatility of an open frame chassis mountable product. Select from a wide variety of optional touch screens, protective glass, films or privacy shields. SEETEC custom designs and builds for OEM's, providing custom enclosures, private label products, display selection assistance, special power requirements and customized warranty and service programs.
Application
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems.



Display Spec.
 Model   PF150-3AHT (without touchscreen: PF150-3AH)
 Screen Size  15"
 Touch Screen  4&5Wire Resistive Touch (Optional)
 Touch Interface  USB (RS232 for Optional)
 Resolution  1024x768 pixels
 Aspect Ratio  4:3
 Brightness  350cd/m²
 Contrast Ratio  600:1
 Backlight  LED
 Viewing Angle  70°/70°(L/R) 70°/65°(U/D)

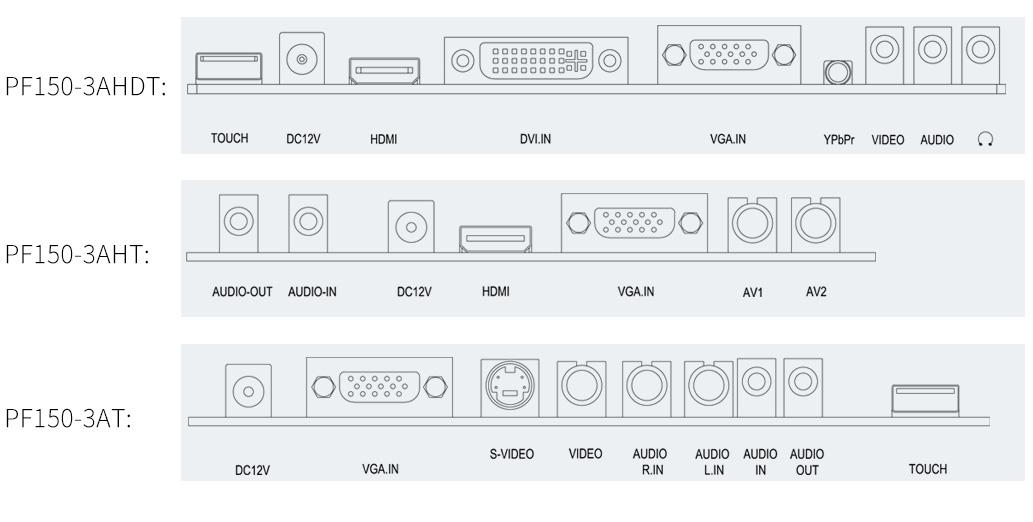

Interfaces
PF150-3AHDT: HDMI, DVI, VGA, YPbPr, Video, Audio in, Audio out, USB for touch

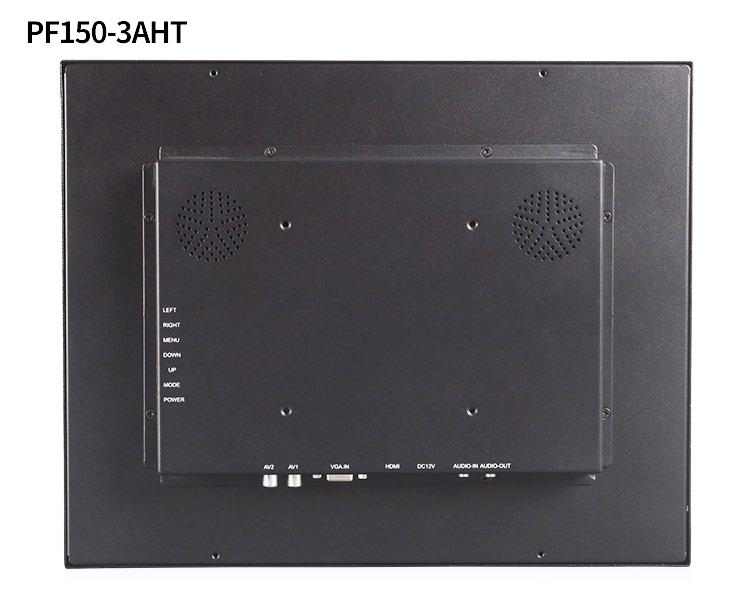

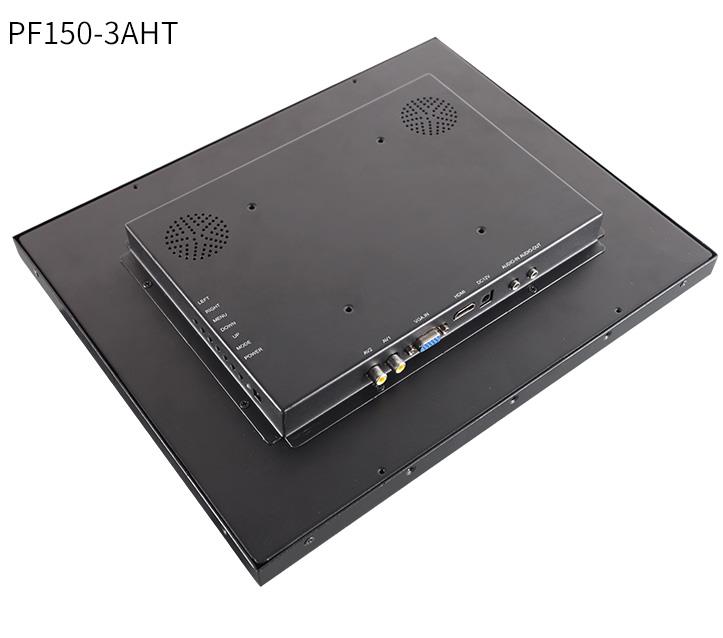

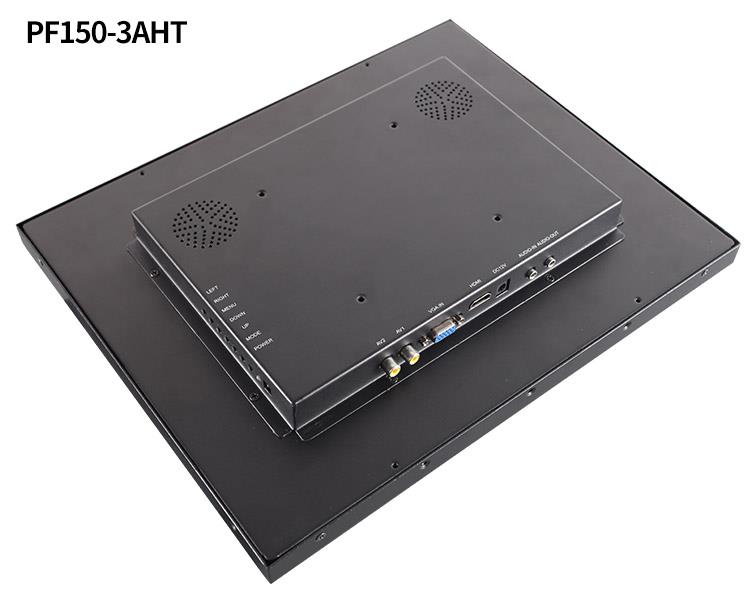

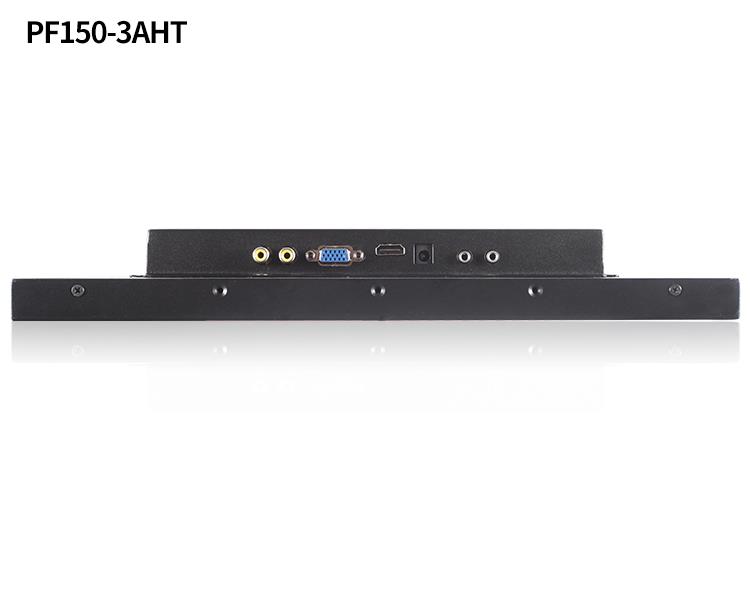

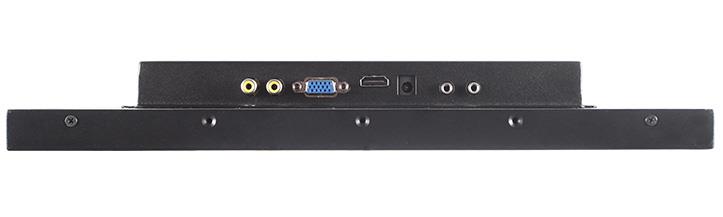

PF150-3AHT: HDMI, VGA, AV1, AV2, Audio out, Audio in

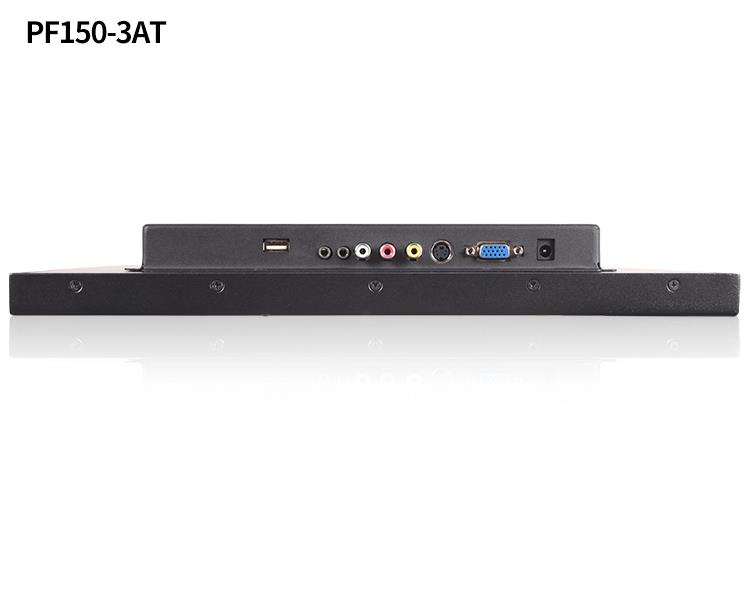

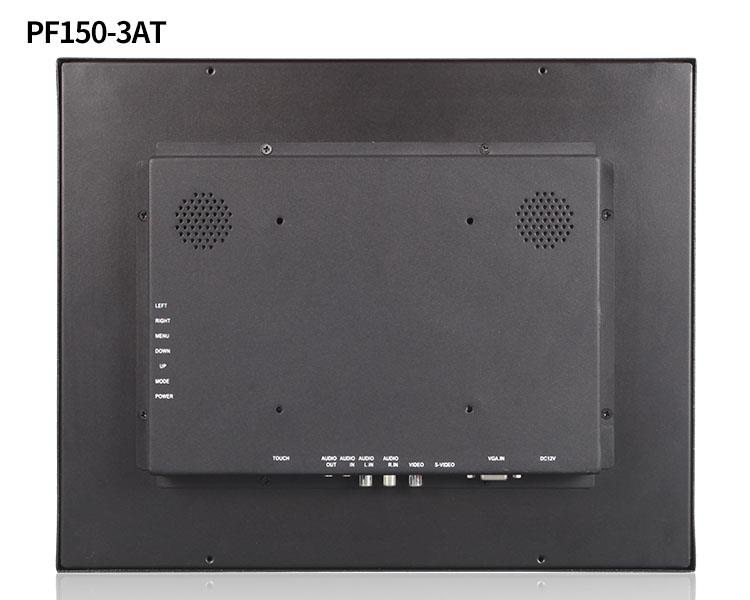

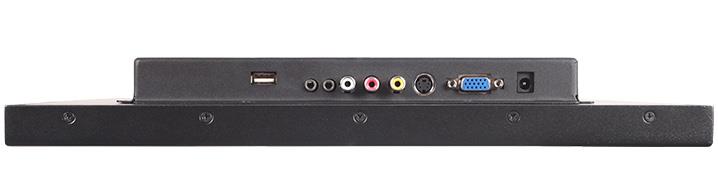

PF150-3AT: VGA, S-video, Video, Audio R/L in, Audio in, Audio out, USB for touch

General
 Input Voltage  DC 9~18V
 Power Consumption  ≤26W
 Working Temperature  -10℃~50℃
 Storage Temperature  -20℃~65℃
 Unit Size  346.6 L×279.6H×45D (mm)
 Unit Weight  3700g

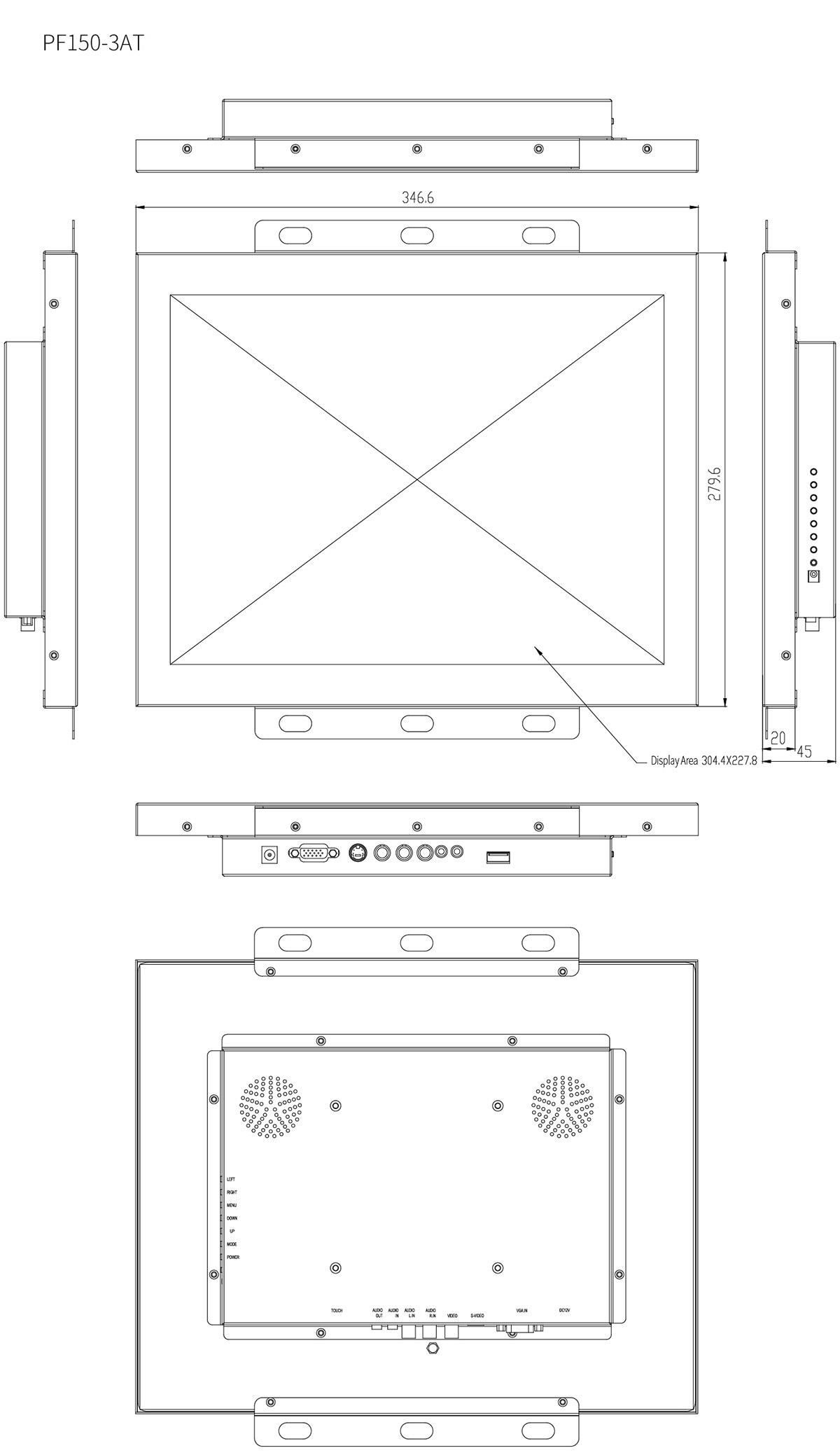

Dimensions (Unit: mm)
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems.

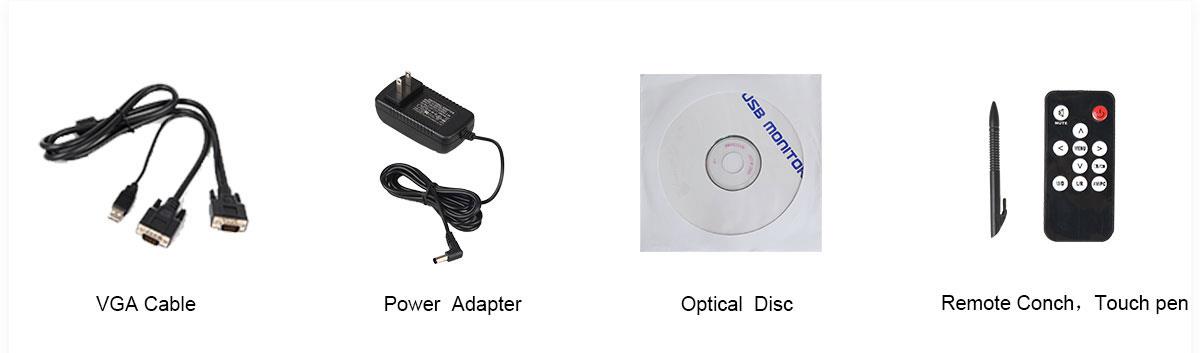

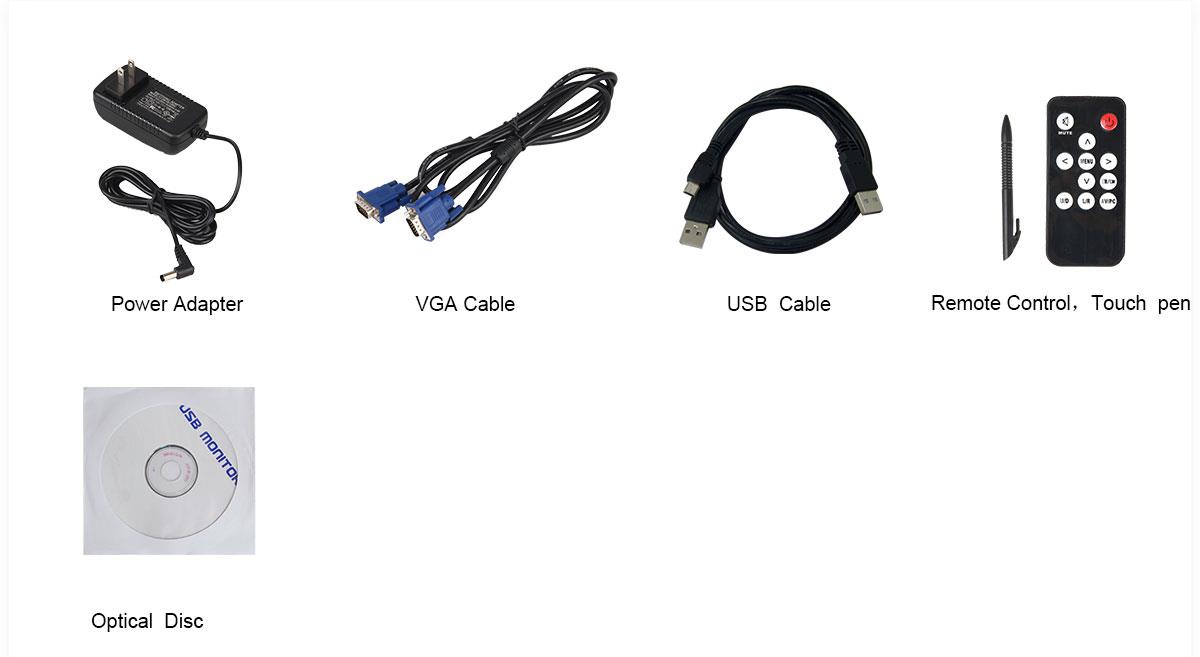

Standard Accessories (PF150-3AT):
1× Power Adapter
1× VGA Cable
1× USB Cable
1× Remote Control
1× Touch Pen
1× Optical Disc

Standard Accessories (PF150-3AHT):
1× Power Adapter
1× VGA Cable
1× Remote Control
1× Touch Pen
1× Optical Disc
